Washing Machine Stator Electrical Testing Machine Multiple Language Enclosed Test Bench

Qingdao AIP Intelligent Instrument Co., Ltd
Contact Now

Washing Machine Stator Electrical Testing Machine Multiple Language Enclosed Test Bench

  • 1
  • 2
  • 3

Brand Name : AIP

Model Number : AIP89**

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Supply Ability : 300 sets per month

Delivery Time : 45 working days

Packaging Details : Wooden case

Size : 1405mm*660*840

Weight : 140KG

Language : Multiple

Test bench : Enclosed

Temperature compensation : Yes

Display : 10.4 touch screen

Contact Now

Washing Machine Stator Testing System For Home Appliance Industry

1. Test object:

Stator of washing machine motor

2. Test items:

Insulation resistance, surge, winding resistance, AC Hipot, rotation

3. Function description:

3.1 Built in industrial computer (IPC), Linux operating system, professional control software

3.2 Indicating light: red, green and yellow

3.3 The resistance can be corrected to that under normal temperature when testing the DC winding

resistance.

3.4 The left station and right station works alternatively.

3.5 All items can be selected by the operator

3.6 ≥1000 motor models can be established.

3.7 The parameters range for each type of motor can be entered and saved. The inductance and

resistance test has the function of setting and displaying the unbalanced degree.

3.8 “Continue to test” and “stop the test” can be selected if the stator fails the test. If the stator fails the

winding resistance test, the test will be stopped until testing all the three windings.

3.9 The testing data can be exported via USB interface, including the test parameters.

3.10 The testing data can be exported via USB interface.

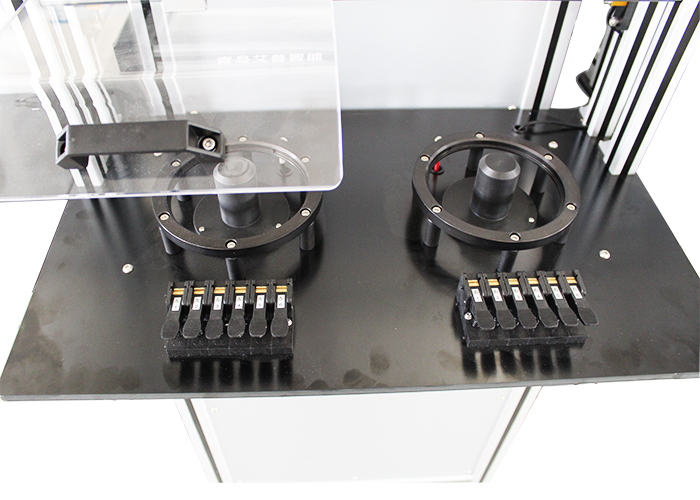

4. Test bench

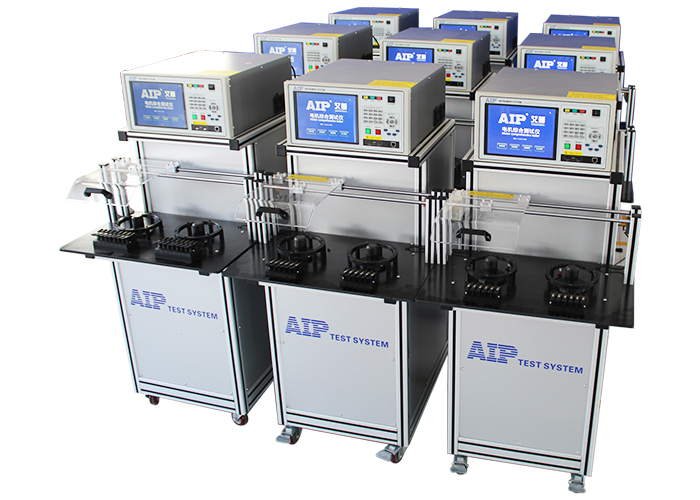

Washing Machine Stator Electrical Testing Machine Multiple Language Enclosed Test Bench

5. Technical specification

Test Item AC Hipot, insulation resistance, surge, winding resistance, and rotation
Test station Dual station, standard equipped with test bench
Display Keyboard + touch screen(10.4 ’)
AC Hipot
Output voltage setting range/ precision AC 500~3000V ±(2%×setting value+10V)
breakdown current testing range/precision 0.10~20.00mA ±(2%×display value+0.05mA)
Hipot breakdown current presetting alarm range Max:0.10~20.00mA;Min:0.00~20.00mA
Hipot current/resolution ±(2%×display value+0.05 mA);0.01 mA
test time range/resolution 0.5~999.9s 0.1s/step
Insulation resistance
output voltage setting range/precision DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision 1~500MΩ ≤100MΩ:±(3%×display value+0.5MΩ); >100MΩ:±(5%×display value+5MΩ)
insulation resistance alarm setting range Max:0~500MΩ;Min:1~500MΩ
test time range/resolution 0.5~999.9s 0.1s/step
Surge
output voltage setting range/precision 500~3000V ±(3%×display value+8V)
sampling frequency 100MHz
Surge graph comparison Area, area difference, corona, phase. Three surge graphs will be displayed on the test interface
DC winding resistance
measuring range and precision 10.0mΩ~20KΩ ±(0.3%×display value+3 words) temperature compensation can be set
test time range/resolution 0.5~999s 0.1s/step
temperature compensation Yes
temperature probe/measuring range DS18b20 -10.0℃~+50.0℃
test precision ±0.5℃(range:-10℃~+50℃)
Direction of rotation
rotation CW/CCW/still

6. Configuration list

No. Name Function Unit Quantity
1 Master unit Control the test module and switch the test items, save testing data Set 1
2 Test software Save the test conditions/results, switch the test process Set 1
3 Channel switch unit Switch the let/right station Set 1
4 Cabinet and power supply Integrated driving module Set 1
5 Test bench Integrated customized test bench Set 1

Washing Machine Stator Electrical Testing Machine Multiple Language Enclosed Test Bench
